Low Noise Amplifiers

MPG Solutions® designs and manufactures Low Noise Amplifiers (LNAs) for applications throughout the RF Spectrum, from HF to above 1 GHz.

Overview

MPG Solutions® Low Noise Amplifiers (LNAs) are designed to deliver exceptional performance across a wide range of RF applications, from HF to above 1 GHz. Engineered for superior signal clarity, low noise performance, and high linearity, our LNAs are integral components in Integrated Cosite Equipment (ICE) solutions and are also available as standalone units to support custom RF system architectures.

Benefits

Our SATCOM LNA and SATCOM Limiter Amplifier solutions provide high gain, low noise figures, and excellent third-order intercept points (OIP3), ensuring optimal signal reception while mitigating the impact of interfering signals. These amplifiers support mission-critical communications with industry-leading specifications and reliability.

MPG offers customizable solutions to meet specific frequency coverage, gain, and power requirements.

Capabilities

SATCOM Low Noise Amplifier (LNA)

Part Number	138750
Frequency Coverage:	243 to 270 MHz
Gain:	20.5 ± 1.5 dB
Noise Figure:	2.0 dB max.
VSWR:	1.35:1 max.
OIP3:	+50 dBm (two tone test)
RF Connectors:	RF In: SMA Female (J1) RF Out: SMA Female (J2)
DC Power Connector:	9-pin Male D-subminiature (P1) (P1 pin1 GND, P1 pin5 +24 VDC ± 5%) Note: P1 includes Amp locking posts

The plots below are provided in order to demonstrate typical performance available from the Low Noise Amplifier (LNA) (illustrated performance is typical, not guaranteed):

SATCOM LIMITER AMPLIFIER

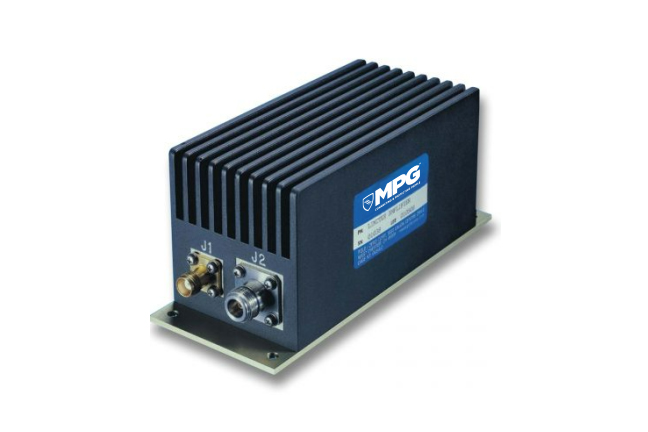

The SATCOM Limiter Amplifier enhances receiver sensitivity and protects against strong interfering signals in the 243–270 MHz SATCOM band. With low noise (≤1.8 dB), high gain (19.5 ± 1 dB), and 48 dBm OIP3, it ensures reliable performance while limiting output power to +35 dBm under extreme conditions. Customizable frequency ranges and limiting levels are available to meet specific needs.

Part Number	138900
Frequency Coverage:	243 to 270 MHz
Gain:	19.5 ± 1 dB
Noise Figure:	1.8 dB
RF Output Power Limiting:	< 35 dBm (< 45 dBm for initial 20 us)
Input/Output Impedance:	50Ω
Modulation Types:	FM, FSK, PSK
DC Power:	+28 VDC @ 1800 mA max
Operating Temperature Range:	0°C to +50°C
RF Connectors:	RF In: TNC Female (J1) RF Out: N Female (J2)
DC Power Connector:	M38999/42WB99PN (J3) (7-pin Circular)

Designed for mission-critical SATCOM applications, the SATCOM Limiter Amplifier ensures optimal system performance by maintaining high linearity and protecting receivers from signal overload. Its built-in power limiting feature prevents excessive output while maintaining signal integrity and clarity in high-interference environments. Engineered for rugged reliability, it seamlessly integrates into demanding RF systems.

Connect with our engineers today to discuss how this amplifier can enhance your SATCOM performance or explore custom solutions tailored to your needs.

ASK AN ENGINEER

Problems Solved

Enhanced Signal Clarity – Reduces noise and improves signal-to-noise ratio for clearer RF communications.
Interference Mitigation – Protects sensitive receivers from strong interfering signals, ensuring reliable system performance.
Optimized Cosite Performance – Supports complex RF environments where multiple signals operate in close proximity.
High Linearity & Dynamic Range – Ensures strong signal handling without distortion, even in high-interference scenarios.
Customizable Solutions – Offers tailored frequency coverage, gain levels, and power specifications to meet unique system requirements.
Compact & Rugged Design – Engineered for space-constrained and harsh operational environments.
Seamless System Integration – Designed to work as standalone amplifiers or within MPG’s Integrated Cosite Equipment (ICE).
