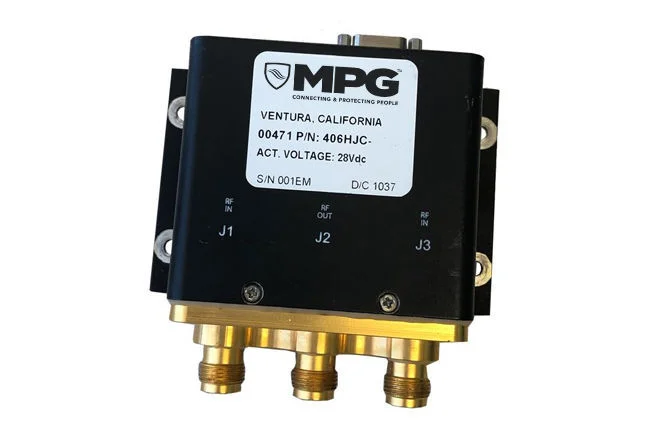

Space-Qualified Coaxial SPDT Switches

Overview

The below table shows examples of Space-Qualified SPDT switches, i.e. operating requirements that the switches had to meet.
(The numbers do not necessarily represent the penultimate capability of the switches).

The parameters are provided in space environment (on orbit, i.e near-vacuum pressure), in the worst case over frequency range and operating temperature range. Please contact us for more details below.

*The value for "RF power (Max)" is provided for reference only in this table. Several parameters need to be defined. Please contact us for more information.

Questions? Email AskDK@dowkey.com

Space Qualified Coaxial SPDT

Item Number	RF Connectors	Frequency	RF Power*	RF Parameters dB			DC Connection	DC Voltage	Operating Mode
				IL (Max)	RL (min)	Isol. (min)
1	SMA	0~18 GHz	2 W	0.35	16.5	60	Solder Terminals	11~14 V	Pulse Latching
2	SMA	0~18 GHz	1 W	0.35	16.5	60	9-pin Micro-D	11~13 V	Pulse latching
3	SMA	1.0~2.5 GHz	18 W	0.5	23.1	50	9-pin D-sub	25~31 V	Failsafe
4	SMA	1.8~8.5 GHz	20 W	0.5	13	40	Solder Terminals	24~34 v	Pulse latching
5	SMA	2~2.5 GHz	40 W	0.2	23.1	70	Solder Terminals	21~35 V	Pulse latching
6	SMA	7.0~8.5 GHz	10 W	0.3	15.5	55	Solder Terminals	21~35 V	Pulse latching
7	SMA	8~12 GHz	20 W	0.3	19	75	Solder Terminals	23~43 V	Pulse latching
8	SMK (2.9 mm)	28~30 GHz	1 W	0.5	14.7	60	9-pin D-sub	24~43 V	Pulse latching
9	TNC	1.0~2.0 GHz	300 W	0.15	20.8	60	15-pin Micro-D	25~35 V	Pulse latching
10	TNC	8.3~8.6 GHz	45 W	0.3	15.5	55	9-pin D-sub	22~35 V	Pulse latching
