402P-230132

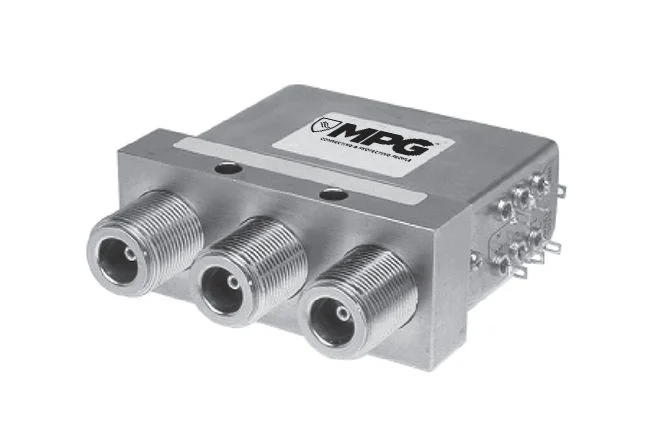

SPDT High Power Coaxial Switch

Overview

Part Number : 402P-230132

The 402-Series part number 402P-230132 SPDT high power coaxial switch switch is ideal for DC to 12.4GHz applications with 1.50 @ 12.4 GHz VSWR performance and 50 Ohm impedance. It features failsafe actuator, 28 VDC coil voltage, and N female connector, and it requires 24V ~ 32V voltage supply. Additionally, it has DC to Coils drive circuit options, mechanical indicators and Pwr DC conn special options.

Request For Quote

Product Specifications

Frequency GHZ

VSMR

(MAX)

Isolation dB

(min)

Insertion Loss dB

(max)

Coil Voltage

Circuit Options

Actuator Type

Indicators

Connector

Operating

Temperature

DC to 12.4GHz

1.50 @12.4GHz

60dB @ 12.4GHZ

.50dB

28 VDC

DC to Coils

Failsafe

Mechanical Indicators

N Female

-25°C ~ 65°C

Additional Specifications

Switching Time:
15 ms maximum
Mechanical Life Cycles*:
1,000,000 minimum
5,000,000 minimum (“U” Option
Vibration, Operating:
10G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
30G, 1/2 Sine, 11 ms

* Performance and weight varies depending on selected options. Values listed
are for Standard 401 Failsafe model.

IEEE Frequency Bands

HF-Band VHF-Brand UHF-Band L-Band

S-Band C-Band X-Band
