CANBUS Series

Fast system integration and flexibility, MPG's CANBUS system is ideal for any ATE application.

Overview

MPG's exclusive CANBus switch line allows for simple integration and commanding of switches over ENET, GPIB, or USB. Great for test setups or matrix solutions.

Frequency Range: DC to 40 GHz

Find Products Catalog

About The Technology

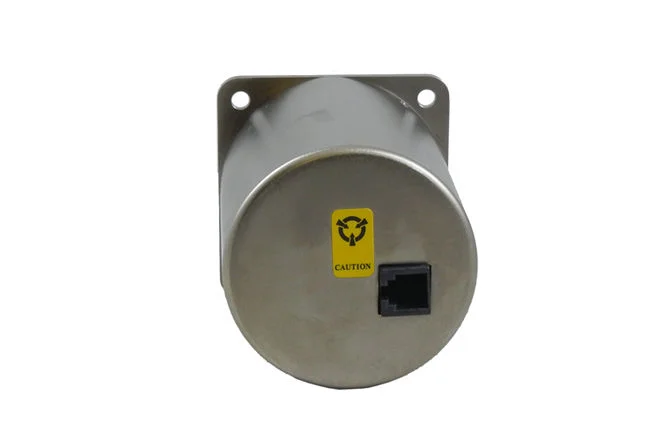

SPNT Coaxial switches-CANBUS Series

Simple integration and switch commanding. Allows for "build your own" modular switch matrix assemblies utilizing the core switch technology that MPG offers.

Product Inquiry

Featured Brand

DOW-KEY

Features & Specifications

Operating Voltage (across temperature range):

12 Vdc (11-14 Vdc)
24 Vdc (20-32 Vdc)

Coil Current (max. @ nom. Vdc & 25°C):

12 Vdc | Consult with factory
24 Vdc | 195 mA

Stand-By Current (nom. Vdc @ 25°C):

CANBus:12 Vdc 35 mA
TTL: 24 Vdc 26 mA

Stand-By Current (typ. Vdc @ 25°C):

CANBus: 32-41 mA
TTL: 23-30 mA

Switching Time:

15 ms maximum

Operating Temperature:

-25ºC to +75ºC

Storage Temperature: -55ºC to +85ºC

Mechanical Life Cycles: 5,000,000 minimum

Vibration, Operating:

7G RMS, 20-2000 Hz

Nominal Weight:

8.8 oz. (250 g.)

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

SPnT Coaxial Switches are a durable choice for routing microwave signals or RF energy, making them a good fit for multiple markets, including aerospace, electronic warfare, radar, space, automated test equipment (ATE), communications and medical.
