919 Series
SPDT Coaxial Switches, 919 Series can be designed and built to meet your specific application requirements.
Overview

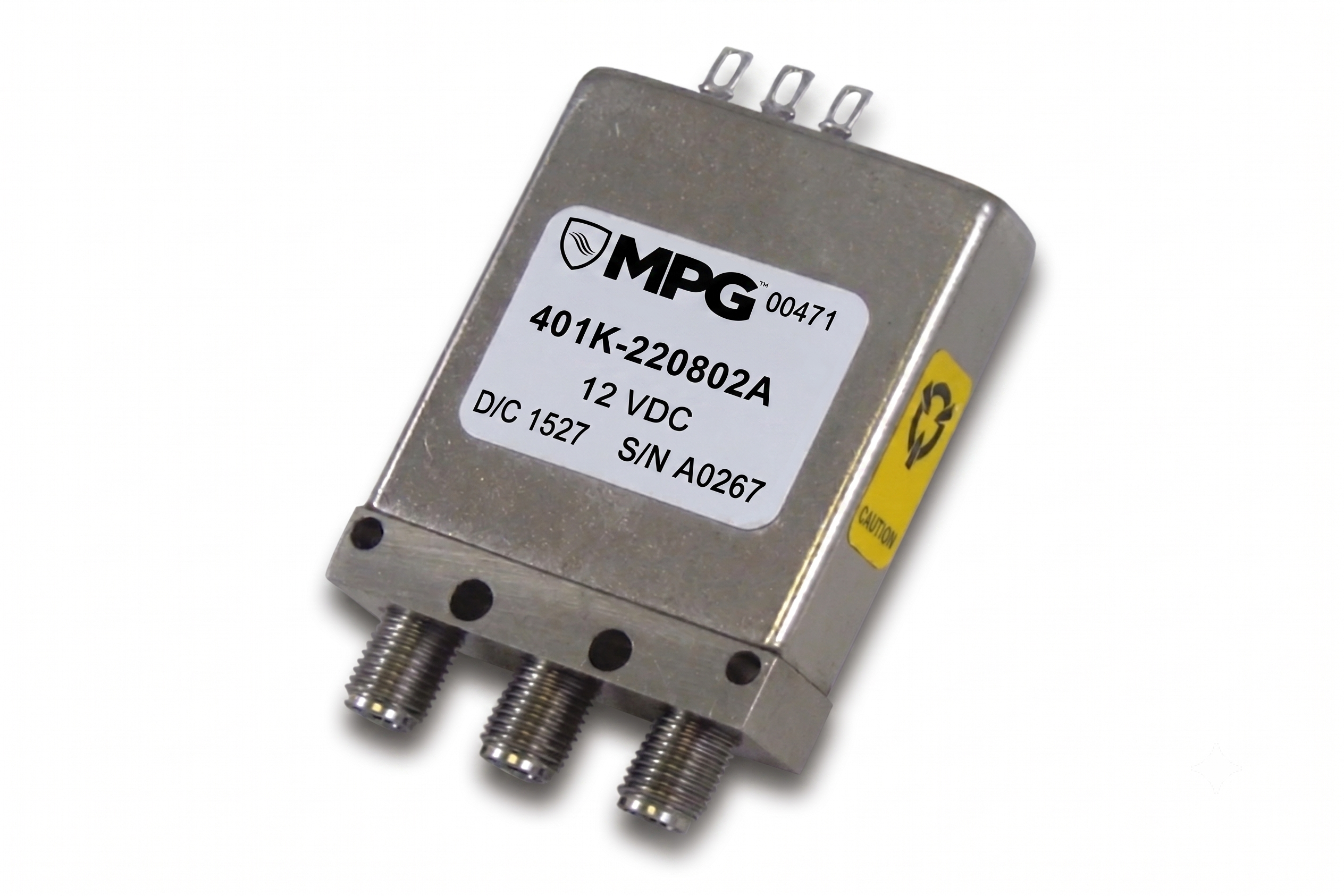

Ruggedized SPDT that routes the signal to one of two outputs. SMA connectors.
Frequency Range: Various Ranges
Lifecycles: 5M
Configurations: Power, Temperature Lifycycle, Connector, Voltage, and Circuit options are available.
About The Technology
SPDT Coaxial Switches-919 Series
High power handling, low insertion loss, low VSWR, high isolation
Featured Brand
Features & Specifications
Operating Voltage: (across temperature range) 28 Vdc (20-30 Vdc)
Coil Current (max @ nom.Vdc & 20°C): 28 Vdc 120mA
Switching Time: 20 mS maximum
Operating Temperature: -55ºC to +85ºC
Mechanical Life, Cycles: 1,000,000 minimum
Vibration, Operating: 20g’s sine/random
Mechanical Shock, Non-Operating: 50G, 1/2 Sine, 11mS
Nominal Weight: 2.0 oz., (57g.)
* Performance and weight varies depending on selected options.
Benefits
MODULAR
SWaP
CUSTOM DESIGN
Applications
SPDT Coaxial Switches are a durable choice for routing microwave signals or RF energy, making them a good fit for multiple markets, including aerospace, electronic warfare, radar, space, automated test equipment (ATE), communications and medical.
