521 Series

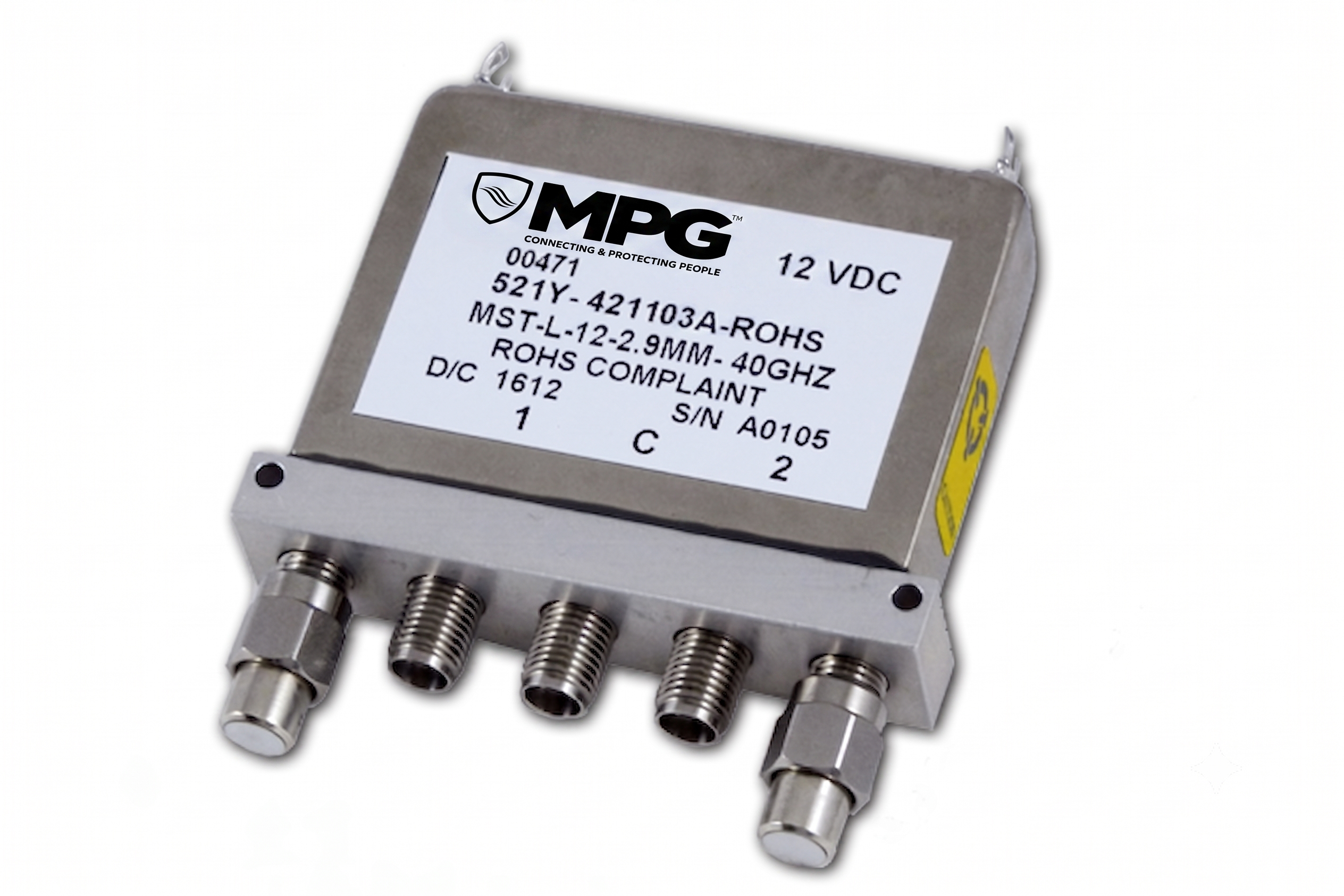

SPDT Coaxial Switches, 521 Series feature several configurations that can be leveraged to meet the most rugged application needs.
Overview
Routes signal to one of two outputs. Great for redundancy systems that require a terminated switch. SMA or 2.92 mm connectors.
Frequency Range: DC to 40GHz
Lifecycles: 5M
Configurations: Power, Temperature Lifycycle, Connector, Voltage, and Circuit options are available.
About The Technology
SPDT Coaxial Switches-521 series
High power handling, low insertion loss, low VSWR, high isolation
Featured Brand
Features & Specifications
Operating Voltage (across temperature range):
- 12 Vdc (11-14 Vdc)
- 24 Vdc (20-28 Vdc)
- 28 Vdc (24-32 Vdc)
Coil Current (max. @ nom. Vdc & 25°C)*:
- 12 Vdc | 265 mA
- 24 Vdc | 205 mA
- 28 Vdc | 175 mA
Switching Time:
- 15 ms maximum
Operating Temperature:
- -25ºC to +65ºC (Standard)
- -55ºC to +85ºC (Extended “T” Option)
Mechanical Life Cycles*:
- 5,000,000 minimum
Vibration, Operating:
- 10G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
- 30G, 1/2 Sine, 11 ms
Nominal Weight*:
- 2.5 oz. (71 g.)
* Performance and weight varies depending on selected options.
Benefits
MODULAR
SWaP
CUSTOM DESIGN
Applications
SPDT Coaxial Switches are a durable choice for routing microwave signals or RF energy, making them a good fit for multiple markets, including aerospace, electronic warfare, radar, space, automated test equipment (ATE), communications and medical.
