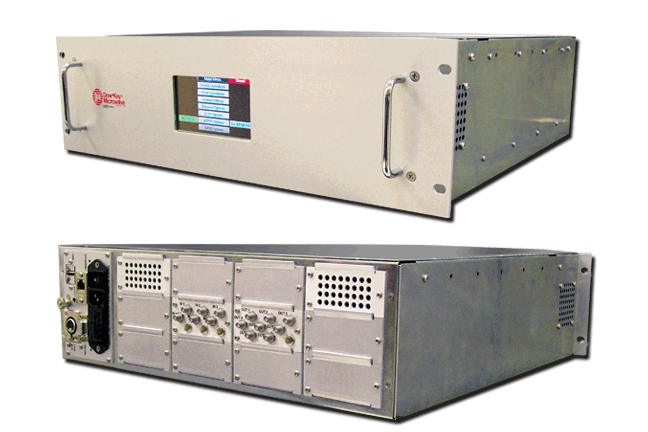

Crossbar

MPG Solutions Crossbar or CB Series conveniently facilitates environments containing multiple test setups, eliminating the need to connect and disconnect devices.

Overview

The CB-series Crossbar matrix adds convenience and flexibility in environments where units or devices under test (UUT/DUT) contain multiple input/output signals or high-speed communication buses. Users can easily switch input signals to any unique output port without having to connect and disconnect them from the setup, facilitating faster and more efficient testing operations.

Benefits

Adding convenience to function, Crossbar matrices deliver a host of benefits, including:

High configurability up to 12 inputs by 12 outputs
Innovative software features:
Built-in firmware to add, remove and address switches for trouble free switch replacement
Application configuration available through “configuration file” - transferred via HTTP, USB or COM ports
Ability to track the life of each switch
Field upgradable firmware via boot loader

Solutions Brochure

Capabilities

Request Quote

Problems Solved

Since any input can be connected to any output at will, Crossbar matrices are applicable for complex testing situations, including:

Complex test setups and signal switching
Testing of multiple UUT/DUT (units/devices under test) with many input/output signals
Testing of multiple UUT/DUT (units/devices under test) with high-speed communication buses

Markets

Defense Communications ATS GPS
