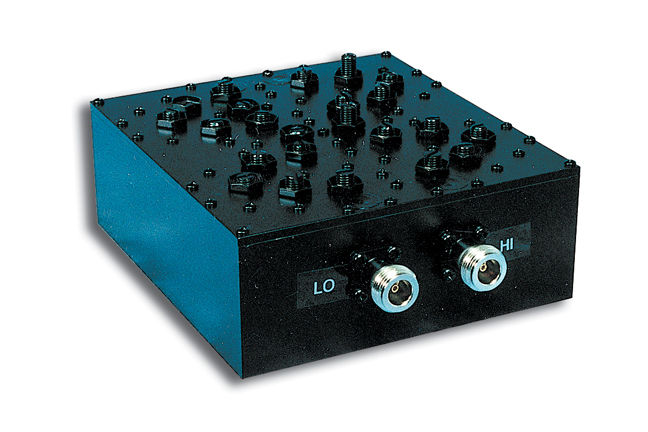

WSD-00026

Overview

Product SKU ID:

Product Name : WSD-00026

40 dB Minimum Isolation

Low Insertion Loss; 0.7 dB typical

Ideal for Microcell Application

Ideal for Microcell Requirements

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection		Antenna to Receive Rejection		Channel to Channel Isolation
Receive	Transmit	1.2 dB maximum	DC-845 MHz	925-2000 MHz	DC-915 MHz	995-2000 MHz	40 dB minimum
880-915 MHz	925-960 MHz	1.2 dB maximum	40 dB minimum	40 dB minimum	40 dB minimum	40 dB minimum	40 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Operating Temperature	Non-operating Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous	14 dB minimum	0 to +50°C	-40 to +85°C	0 to 90%, non-condensing	5.5”W x 5.10”D x 2.75”H (excluding connectors) [139.7 x 129.5 x 69.9mm]	N-F
20 watts	200 watts
