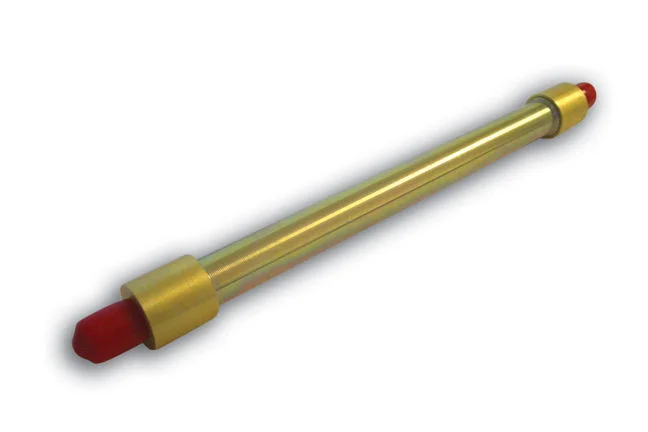

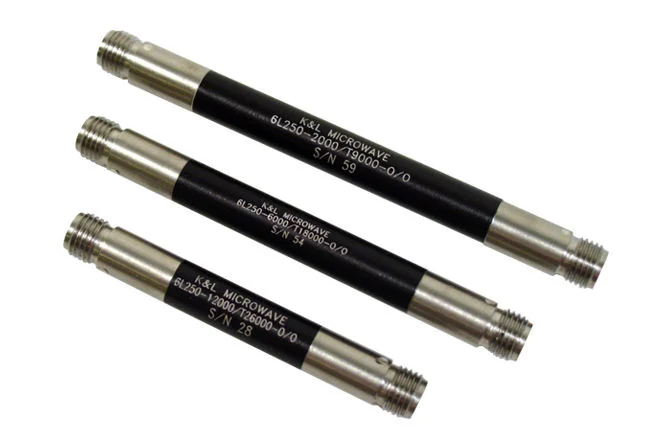

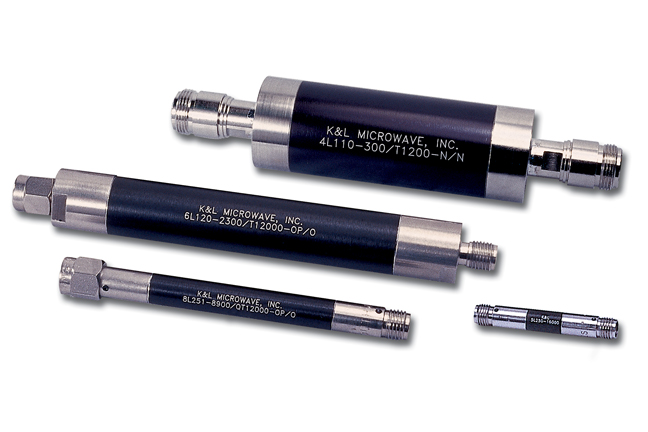

Tubular Fixed Low Pass Filters
Overview
- Economical Design Yields High Performance Results
- Covers the 100 MHz to 20000 MHz Frequency Range
- Design Available in 2-8 Sections
- 0.05 dB Chebychev Design Response
- Ruggedized Package Design
| Model | Diameter (Inches/mm) | Frequency (MHz) | VSWR | Average Power (Watts) | Impedance (Ohms) | No. of Sections | Shock | Vibration | Temperature | Relative Humidity |
| L250 | .25/6.35 | 400-20000 | 1.5:1 | 2 | 50 | 2-8 | 20 G’s, 1/2 Sine, 11 Ms | 10 G’s, 10 Hz2000 Hz | -55 to +85 °C | 0-95% |
| L120 | .50/12.7 | 100-3000 | 1.5:1 | 18 | 50 | 2-8 | 20 G’s, 1/2 Sine, 11 Ms | 10 G’s, 10 Hz2000 Hz | -55 to +85 °C | 0-95% |
| L340 | .75/19.05 | 100-2000 | 1.5:1 | 40 | 50 | 2-8 | 20 G’s, 1/2 Sine, 11 Ms | 10 G’s, 10 Hz2000 Hz | -55 to +85 °C | 0-95% |
| L110 | 1.25/31.7 | 100-1000 | 1.5:1 | 200 | 50 | 2-8 | 20 G’s, 1/2 Sine, 11 Ms | 10 G’s, 10 Hz2000 Hz | -55 to +85 °C | 0-95% |
Example To Order: 5L120-2250/T3000-O/O
| Example | 5 | L | 120 | 2250 | T | 3000 | O | O |
| Code | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Code | Description |
| 1 | Number of Sections |
| 2 | L- Low Pass |
| 3 | Model- |
| 250-.25”- 6.35mm | |
| 120-.50” - 12.7mm | |
| 340-.75” - 19.05mm | |
| 110-1.25” - 25.4mm | |
| 4 | Center Frequency (MHz) |
| 5 | Supplemental Codes (See Catalog Page 13) |
| 6 | Upper Frequency Stopband Limit (MHz) |
| 7 | Input Connector |
| 8 | Output Connector |
About The Technology
Tubular
MPG’s Tubular Bandpass Filter series offers the same resilient package and economical price point as our Tubular Lowpass Filters, and can be manufactured to customer electrical, mechanical and environmental specifications. In a lowpass configuration, Tubular Filters suppress harmonics while limiting high frequency interference and provide durable operation from a rugged package design.
Featured Brands
Features & Specifications
Tubular Filter frequency: VHF, UHF, L band, S band, C band, X band, Ku band and K band from 100 MHz to 20,000 MHz.
Tubular Filter features: Tubular Filters from K&L Microwave are available in bandwidths from 0.2% to 50%, in configurations of 2 to 8 sections. Filters are available in a Q range of 250 to 2000 with bandpass and low pass designs available.
Benefits
MODULAR
SWaP
CUSTOM DESIGN
Applications
MPG's Tubular Filters offer wide stopbands and very high rejection in a high Q environment, making them suitable to a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
