Lumped Element Fixed Band Reject Filters

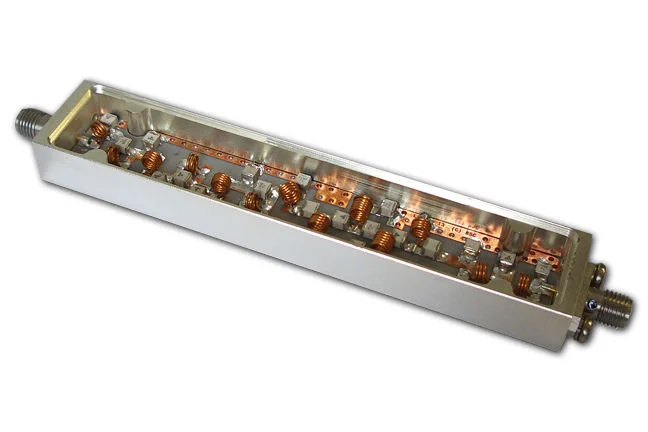

MPG_BSC_F_BP_Fixed_Lumped-Element

Overview

Thanks to durable standard packaging and our team of experienced engineers, MPG  can provide customized Lumped Element Filters (LC Filters) at a reduced time to market. Standard packages are available for most applications, including those where severe environmental stresses, such as temperature, humidity, shock, vibrations and acceleration are common. HF, VHF and UHF in bandpass, band reject, high pass and low pass designs.

Frequency Range: HF, VHF and UHF from 0.5 MHz to 10 GHz (L band, S band, C band, X band)

Bandwidth: 1% to 200%

Find Products  Catalog



About The Technology

MPG_KLM_FL_BR_FIX_LE_MUL_6IN40-897.5-X265-O-O

Lumped Element

LC filters are passive devices, smaller than the operating wavelength, to permit a wider bandwidth within compact packaging. Special design capabilities for our Lumped Element Filters include, but are not limited to, elliptical, pseudo-elliptical, amplitude equalization, group delay equalization, bessel, gaussian, and highpower.

Product Inquiry

Featured Brands

KL_Logo-319x319
BSC_Logo-319x319

Features & Specifications

Frequency: Lumped Element Filter frequency: HF, VHF and UHF from 0.5 MHz to 10 GHz (L band, S band, C band, X band)

Features:LC Filters are available in bandwidths from 1% to 200%, in configurations of 2 to 10 sections. Filters are available in a Q range of 400 to 800 with bandpass, band reject, high pass and low pass designs available.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.
