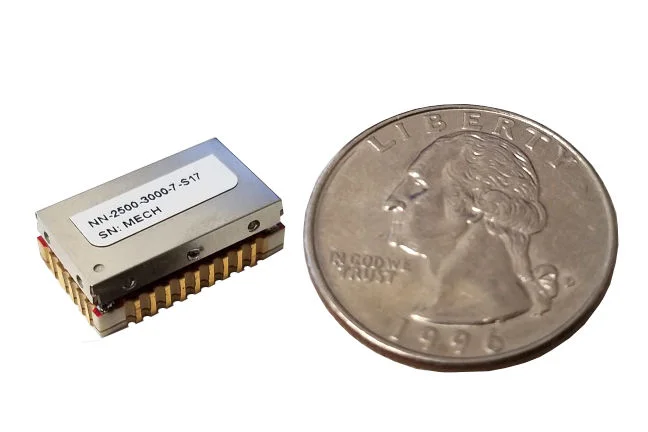

The NANO-POLE® Filter holds a significant place in the MPG’s line of Tunable Filters. As a next-generation device, the NANO-POLE® Tunable Filter delivers optimal DC consumption, RF power handling, insertion loss, signal purity and linearity in a slim lightweight design.
Frequency Range: HF, UHF, VHF, L band, S band from 225 MHz to 3000 MHZ.
Bandwidth: 3-12%
Offering a 2-pole, Q-constant design, MPG’s NANO-POLE® Tunable Filter provides a close approximation to a Butterworth response, to ensure solid all-around performance in a slim package size. A pin-diode switched binary capacitor array placed in parallel with a high Q inductor or resonator enables the tunable SPI customer interface, for high versatility and performance.
NANO-POLE® Filter frequency: HF, UHF, VHF, L band, S band from 225 MHz to 3000 MHZ.
NANO-POLE® Filter features: NANO-POLE Tunable Filters are available in bandwidths from 3-12% with insertion loss of 2.5 to 8.33. Filters can be constructed in x to x sections with an available Q range of x GHZ to x GHz , in tunable bandpass or band reject notch designs.
Frequency: HF, UHF, VHF, L band, S band from 225 MHz to 3000 MHZ.
Features: NANO-POLE® Tunable Filters are available in bandwidths from 3-12% with insertion loss of 2.5 to 8.33.
With high power in a small package, the NANO-POLE® Tunable Filter offers the following advantages:
The reduced size and power consumption, combined with optimal RF power handling, insertion loss, signal purity and linearity make MPG’s NANO-POLE® Filter applicable for multiple markets, including defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment.
