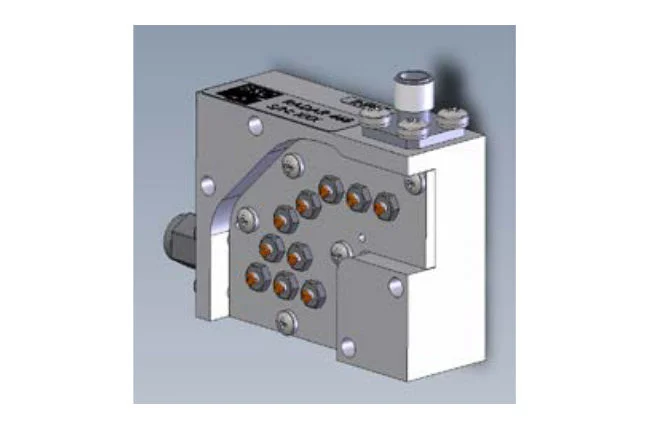

INTERDIGITAL BANDPASS FILTER

RADAR 468-01

Overview

Product SKU ID :

Product Name : RADAR 468-01

Designed to accommodate the needs of the Earth Exploration satellite service, as well as Maritime Radio Navigation and Primary Radio location applications, this compact low loss filter is suitable for inline integration in Tx/Rx chains with its opposite sex connectors.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L Interdigital Filters are designed to the specifications of the user, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space

Product Specifications

Passband	Insertion Loss	Return Loss	Rejection from 9.41 to 10.0 GHz	Power Handling	Operating temperature	Connectors		External Finish
9.2 to 9.3 GHz	1.0 dB max	16 dB min	30 dB min	5 W max	-40 to 85°C	SMA Female	SMA Male	Matt Black
